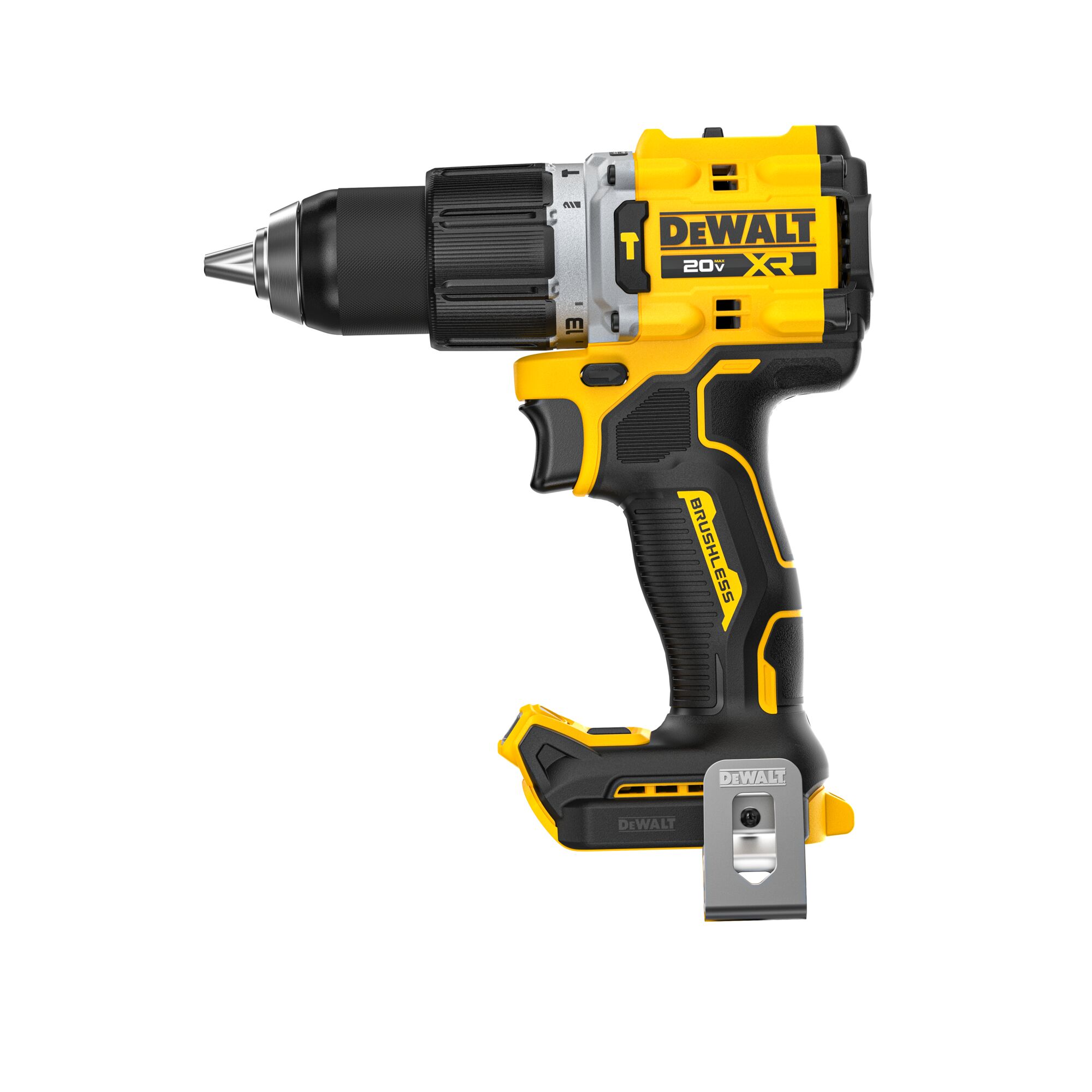

20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill (Tool Only)
20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill (Tool Only)
Our Most Powerful 20V MAX* 2-Speed Hammer Drill** - Complete a wide range of applications with this hammer drill that is up to 109% more powerful†.
Help Maximize Control - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
Competitive Advantage - Up To 25% More Powerful Vs. Milwaukee***
New DCD806B
20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill (Tool Only)
Our Most Powerful 20V MAX* 2-Speed Hammer Drill** - Complete a wide range of applications with this hammer drill that is up to 109% more powerful†.
Help Maximize Control - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
Competitive Advantage - Up To 25% More Powerful Vs. Milwaukee***
Product Details
Downloads
Take on a wide range of demanding applications with the 20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill (battery and charger sold separately), our most powerful 20V MAX* 2-speed hammer drill**. Make up to 175 holes per charge†† with this solution engineered up to 109% more powerful†. Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive, this tool helps maximize control on demanding jobs. Featuring a high-speed transmission, a variable speed trigger with 2 speed settings, and an integrated hammer mode function this drill makes quick work of masonry drilling applications. Work confidently with a 1/2 in. metal ratcheting chuck and illuminate dim work areas with an integrated 3-position LED. As a part of our best performing line of 20V MAX* power tools, this next-generation XR® hammer drill helps you maximize productivity on tough jobs. Battery and Charger Sold Separately
|
Battery Voltage [V]
|
20
|
|
Chuck Size [in]
|
1/2
|
|
Chuck Type
|
Metal
|
|
Has Perform & Protect?
|
Yes
|
|
Max. Power [MWO]
|
1050
|
|
No Load Speed [BPM]
|
0-11059/0-34000
|
|
No Load Speed [RPM]
|
0-650 / 0-2000
|
|
Number of Clutch Positions
|
14
|
|
Tool Length [in]
|
7
|
Help Maximize Productivity - Make up to 175 holes per charge††.
Professional Performance - Complete jobs with top level speed, control, and precision with a high-speed transmission and variable speed trigger featuring 2 settings (no load 0-650/0-2,000 rpm).
Bright LED Worklight - Illuminate dim work areas with an adjustable, 3-position LED featuring 70 lumens and auto-shutoff function.
High Bit Retention - Work confidently with a 1/2 in. metal ratcheting chuck that provides secure bit retention.
TOOL CONNECT™ CHIP READY™ - Featuring TOOL CONNECT™ CHIP READY™ functionality (DEWALT® chip sold separately) when paired with the DEWALT Site Manager™ app‡ that shows data on jobsite asset management and tool location.
Part Of Our Best Performing Line Of 20V MAX* Power Tools and Batteries‡‡ – Innovative power tools and batteries designed to deliver certainty for the world’s toughest pros.
- (1) DCD806 20V MAX* XR® Brushless Cordless 1/2 in. Hammer Drill
- (1) Belt Hook
- 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
Disclaimer(s)
-
*Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
-
**Based on rated MWO using DCB2104 battery.
-
†Based on MWO rated using DCB2104 battery (sold separately) vs. DEWALT DCD778 Hammer Drill
-
††Using 7/8" diameter auger and DCB2104 battery in 1-1/2" SPF.
-
‡Additional subscription charge and third party data rate charges may apply.
-
‡‡Regarding battery, based on longer life (charge cycles) and more power, not in application vs. DEWALT 20V MAX* batteries with comparable amp hours.
-
***Based on MWO, using DCB2104 battery (sold separately) vs. Milwaukee® M18® 2904-20 1/2in. hammer drill using 48-11-1840 4AH battery. Milwaukee® and M18® are registered trademarks of Milwaukee Electric Tool Corp., which has not endorsed or approved this comparison.
